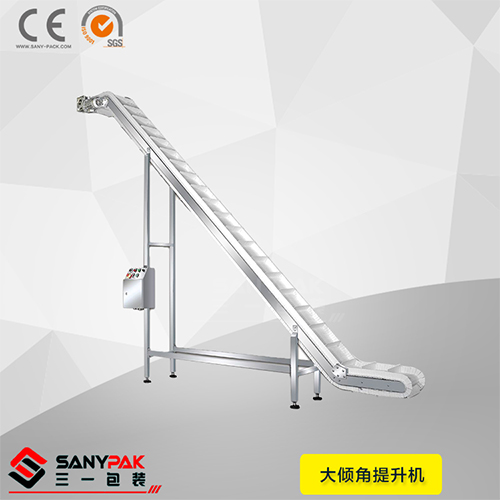

Large angle hoister SP-QT

The scope of application:

Mainly use to hoist of granular materials, such as potato chips, peanuts, candy, dried fruit, frozen food, vegetables, chemicals and other granular or massive items.

Main Features:

1,The contact material conveyor belt consist of modular chain plate,the width and height of conveyor belt is flexible,

the main material is stainless steel,it is more reliable,not easy to deform,it supports low and high temperature.

2, Hoister can be combined with other equipments to reach automatic weigher and packaging production lines,

and maintenance is simple, easy disassembly and  clean.

3, Non-standard size can be customized according to customer requirements.

Technical parameters:

Baffle spacing 254mm

Material # 201, # 304 stainless steel, carbon steel

Delivery capacity 3-7m3 / h

Voltage three-phase AC 220V / AC 380V, 50Hz;

Power 1.1KW

Weight 450KG

Packing size 6090mm (L) * 660mm (W) * 650mm (H)
