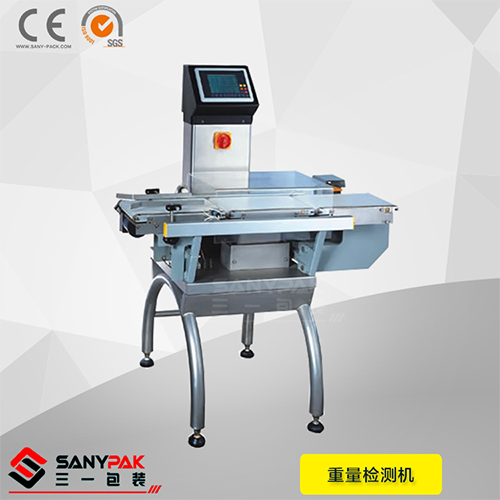

Automatic digital weigh detector SP-C1
Main features:
1, used world's most advanced digital weighing unit, to achieve high-speed, stable measurement.
2, the patent scale frame structure to ensure accurate and stable.
3, LCD touch screen operating system, the English interface, easy to learn.
4, a strong data statistical function,it records the detection data of each time.
5, used detachable conveyor belt, easy maintenance.
6, self-diagnostic function: When Rom / Ram, A / D photoelectric communication error will be showed on monitor.
7, the standard weight has five areas,it can stores 10 groups of product database.
Technical parameters:
Weighing range: 10 ~ 1000g
Weighing accuracy: ± 0.5g
Weighing platform size: length: 300mm; width: 300mm;
Display resolution: 0.1g
Sorting speed: 120 packs / min
Belt speed: 20-70 m / min
Conveyor belt height: 800mm ± 50mm
Delivery direction: facing the user interface from left to right
Motor power: AC 220 V (50/60 Hz)
Operating temperature: from 0 ° C to 40 ° C
Humidity: 90% relative humidity (no condensate)
Scale body part of the material: 304 stainless steel production
Remove the way: putter-type rejection (the weight of the product is automatically rejected)
Machine size: 1100mm (L); 650mm (W); 1350mm ± 50mm (H)
Shenzhen Sany pack Equipment Co., Ltd. is a research and development, production and sales as one of the professional packaging equipment manufacturers. The company's main products are mask packaging machine, vertical packaging machine, strip packing machine, filling equipment, labeling equipment, non-standard assembly line equipment, the company's products have been in the pharmaceutical, cosmetic, food, hardware and other industries widely used, Some products are exported to Europe, the Americas, Southeast Asia and other regions.
