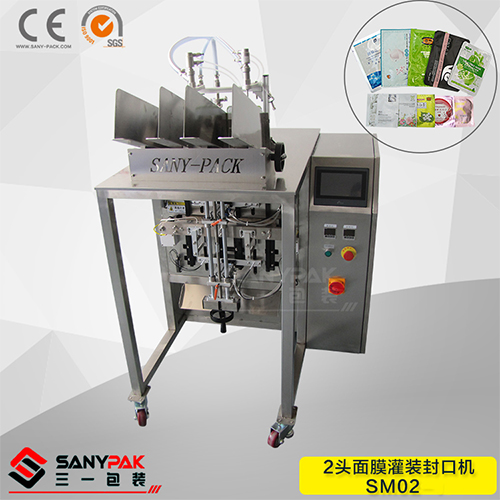

Double head filling and sealing mask machine

Classification of the genus:face mask filling sealing machine
Click times:
Release date:2017/05/16
More
Online inquiry

Detailed introduction

Double head filling and sealing mask machine

Main Features:

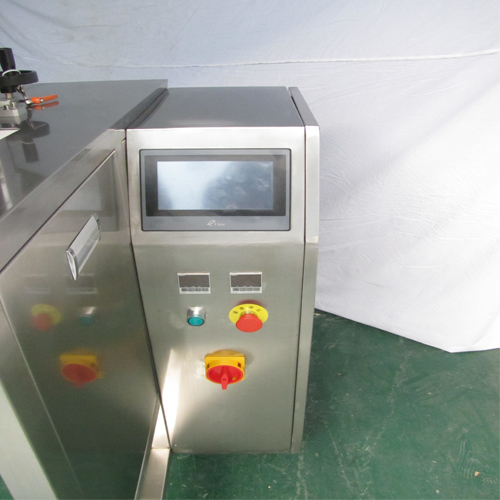

1,Advanced PLC control system and colorful touch screen,easy operation,fairly intuitive and efficient.

2,Automatic bag feeding,liquid filling,sealing,date printing,and bag output,no bag is no filling and sealing.

3,Adopted Taiwan vacuum pump,single phase 220V input voltage,it supports 24 hours constantly working.

4,Machine is equipped with four wheels,it is convenient to move to different places

5,Temperature controlled meter monitors the heat sealing temperature within ±1°C.

6,Adopted piston pump filling,filing strength is big,filling accuracy±0.3g.

7,Machine main material is stainless steel and aluminum alloy.

Application:

It is used for nonwoven filling,sealing and printing,such as face mask,eye mask etc.

The technical parameters:

Number of filling heads	Double head
Bag size	Long 100-200mm wide 90-160mm
Packaging Materials	Composite film, aluminum film, polyethylene / polypropylene and other composite materials
Mask raw materials	Non-woven fabrics, fiber membrane, pearl film and other materials (up to three layers of mask material can be produced)
Production speed	40-50 packs / min
Plus liquid range	5-35ml essence / liquid (plus liquid accuracy of ± 0.2ml)
Power supply voltage and power	Single phase 220V, 2Kw
Total Weight	200Kg
Machine size (L * W * H)	926mm×1300mm×1400mm

Filling,equipment

▲ sample bag chart

Shenzhen Sany pack Equipment Co., Ltd. is a research and development, production and sales as one of the professional packaging equipment manufacturers. The company's main products are mask packaging machine, vertical packaging machine, strip packing machine, filling equipment, labeling equipment, non-standard assembly line equipment, the company's products have been in the pharmaceutical, cosmetic, food, hardware and other industries widely used, Some products are exported to Europe, the Americas, Southeast Asia and other regions.
