Semi - automatic top flat labeling machine

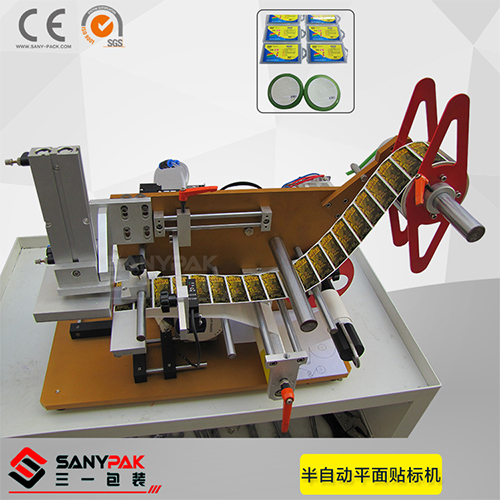

Semi - automatic top flat labeling machine  ST100P

Basic usage:

Application of stickers paste method, to achieve a variety of workpiece surface labeling, such as cosmetics flat bottles, packaging, plastic cover labeling and so on.

Change the labeling mechanism, can be applied to the uneven surface labeling, such as concave plane, circular surface labeling and so on.

Change the fixture, applicable to a variety of irregular parts of the labeling.

Optional ribbon printer or inkjet printer, print on the label production date and batch number, to achieve coding - labeling integration.

Application:

Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code;

Applicable products: require products in the plane, the arc, the circumferential surface, the concave surface, the convex surface or other surface label;

Application industry: widely used in cosmetics, food, toys, cosmetic, electronics, pharmaceutical and other industries;

Application examples: shampoo flat bottle labeling, packaging labeling, caps, plastic shell labeling and so on.

Technical Parameters

Work process:

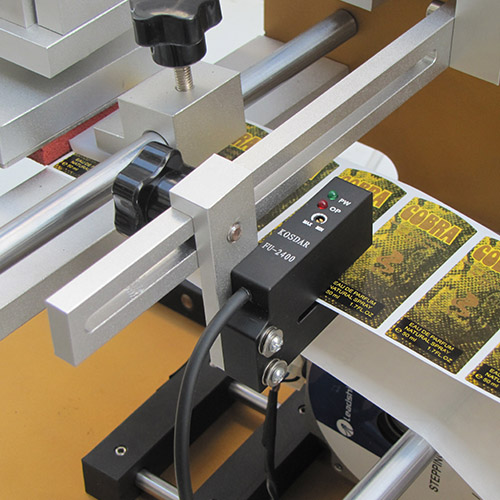

Core work principle: the sensor detects the product in place or foot issued a product in place signal, sucking the label of the tip drop label and then marked, and then return to the original adsorption of the next label, waiting for the next label signal, a label The attached action is completed.

Operation: Put the product -> determine the place (equipment detection control or manual control) -> labeling and labeling (equipment automatically) -> remove the labeled product.

Label production requirements

1, the distance between the label and the label 2-4mm;

2, the label from the bottom edge of the paper 2mm;

3, the end of the label with the end of the material with Gracin material, this kind of end of paper toughness to prevent pull off (to avoid cutting the end of paper);

4, heart diameter 76mm, diameter less than 260mm.

The above label production to be combined with your product, the specific requirements, please communicate with our engineers to prevail!

Features:

1, powerful, can be used for a variety of workpiece plane, circular surface, concave plane labeling, can be used for irregular workpiece labeling;

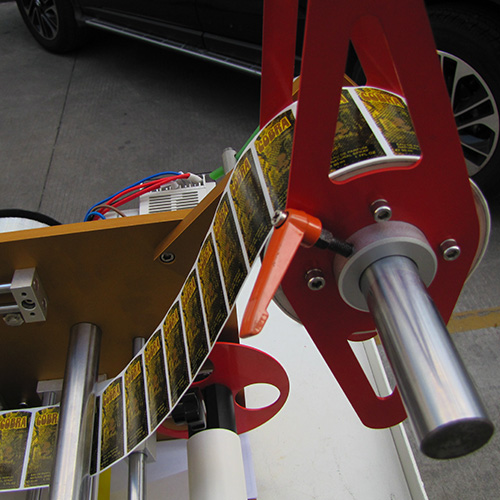

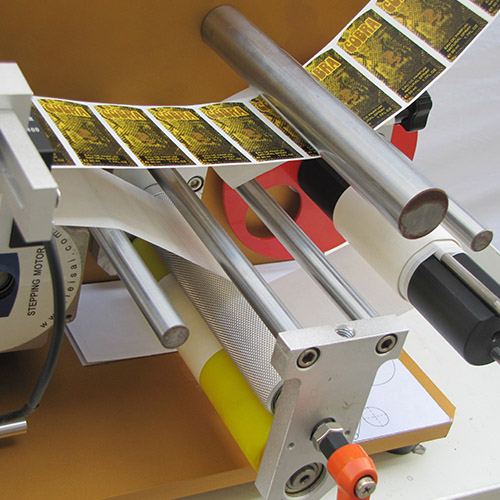

2, the labeling is accurate, high stability, the use of PLC + subdivision stepper motor drive to send the standard, to send the standard accurate; discharge mechanism configuration brake function to ensure that the standard tape taut, to ensure accurate labeling; To prevent the label left and right shift;

3, durable and durable, circuit and gas separation layout, air conditioning equipment, to avoid air damage to electrical appliances, to extend the life of equipment;

4, the whole machine using high-grade aluminum alloy and stainless steel, solid quality;

5, easy to adjust, configure the high and low travel adjustable function, different height product labeling, without repeated replacement of the fixture;

6, beautiful appearance, the use of the end of the computer white box, with stainless steel and high-grade aluminum, nice, to enhance the equipment grade;

7, with manual / automatic two kinds of labeling control, the workers may need to choose the use of sensors or foot pedal to achieve the control; set manual, automatic control button, the length of the standard can be arbitrarily controlled;

8, optional features and components: hot code / Penma function, special label electric eye.

▲ sample bag chart

Shenzhen Sany pack Equipment Co., Ltd.  is a research and development, production and sales as one of the professional packaging equipment manufacturers. The company's main products are mask packaging machine, vertical packaging machine, strip packing machine, filling equipment, labeling equipment, non-standard assembly line equipment, the company's products have been in the pharmaceutical, cosmetic, food, hardware and other industries widely used, Some products are exported to Europe, the Americas, Southeast Asia and other regions.
