Semi - automatic wrap-around labeling machine

Classification of the genus:Semi auto labeling machine
Click times:
Release date:2017/05/16
More
Online inquiry

Detailed introduction

Semi - automatic wrap-around labeling machine ST100R

Main Features:

1, applicable for cosmetics, personal care products, medical supplies, and other light industry in the round bottle labeling

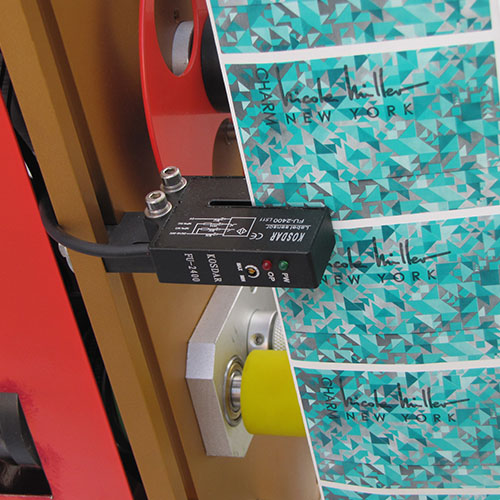

2, photoelectric detection,lablel output and labeling is finished at once time.

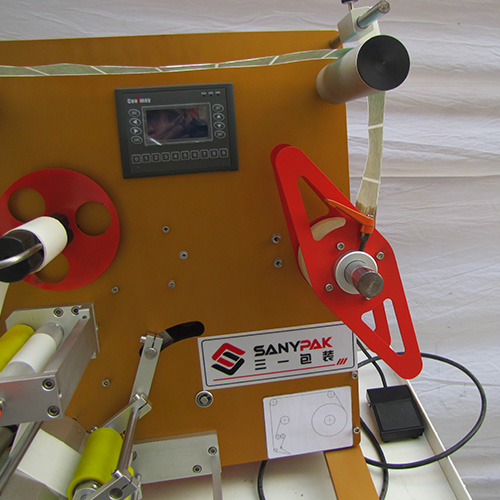

3, humanized touch screen interface, simple and intuitive operation, full online help functions.

4, a number of warnings,label management,Chinese/English interface and other options

Technical Parameters:

Tag object	Diameter 25-80MM round bottle
Labeling parameters	Label length: 30-400mm Label width: 20-130mm;
Labeling speed	15-20pcs/min
Labeling accuracy	±0.5（mm）
Working pressure	0.4-0.6Mpa
Use the environment	Temperature 5-40 ℃ Humidity 15-85%
power supply	220V±5% 50HZ 0.8KW
Total power	100W
Dimensions	600×600× 650mm
Total Weight	30Kg

Shenzhen Sany pack Equipment Co., Ltd. is a research and development, production and sales as one of the professional packaging equipment manufacturers. The company's main products are mask packaging machine, vertical packaging machine, strip packing machine, filling equipment, labeling equipment, non-standard assembly line equipment, the company's products have been in the pharmaceutical, cosmetic, food, hardware and other industries widely used, Some products are exported to Europe, the Americas, Southeast Asia and other regions. Phone / micro letter: 18025354766, you are welcome to consult!
