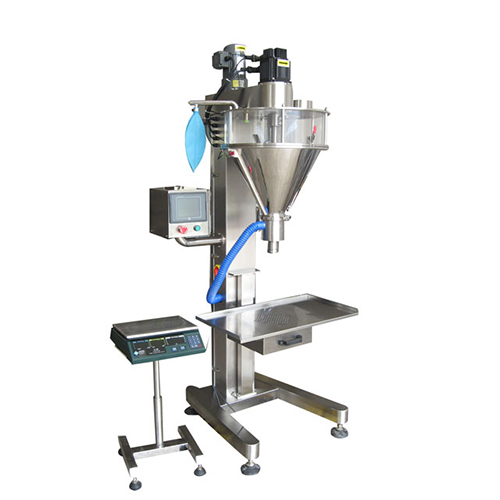

Semi - automatic powder filling machine

Semi - automatic powder filling machine   SGP01

Applicable scope：

It is suitable for powder material such as milk powder, feed, rice flour, sugar, coffee, monosodium glutamate, solid beverage, glucose, rice flour, solid medicine, pesticide, powder granular additive and dye.

Machine features:

1, the whole machine is made of stainless steel, applied for GMP certification and food hygiene certification,it is suitable for corrosion-resistant chemical product packaging.

2, touch screen human computer interface: work stability, anti-interference, accurate weighing, easy operation, intuitive.

3, servo motor auger filler: accurate positioning, high precision, fast speed, large torque, long lifespan, rotary speed can be set, good stability and so on.

4, stirring device is used maintenance-free motor: low noise, long life, life-free maintenance.

5, machine can stores different parameters for different product,it is up to 10 different products.

6, fully sealed air-free glass and stainless steel composite material box,easy to see material inside,product powder is not leak, filler and outlet port has anti-dust device to protect the workshop environment.

7, change auger filler, it can be used for very small powder to big granular products.

Technical Parameters:

1, the machine model BF50

2, the packaging weight: 10-5000g (transform screw accessories)

3, packaging accuracy: packaging weight ≤ 100g deviation ≤ ± 0.5-1g

       100-1000g deviation ≤ ± 0.3-1%

      > 1000g Deviation ≤ ± 0.25-0.5%

4, packing speed: 10-50bags / min

5, power: three-phase 380V (or custom single-phase 220V) 50-60Hz

6, the whole power: 1.3KW

7, the whole weight: 260Kg

8, the whole volume: 800 × 1200 × 2150mm

9, the box volume: 50L
