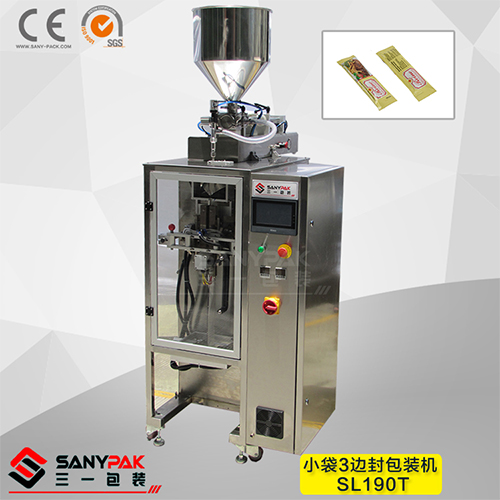

Three side seal pouch filling packing machine SL190T
Main Features:
1,The machine can automatically complete the products measuring, conveying and feeding,
filling and bag forming, date code printing, bag sealing and cutting.

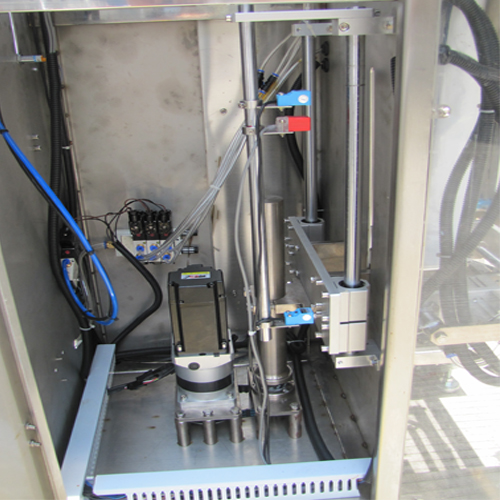

2,Servo motor driven heat seal film pulling system.
3,High sensitive fiber optic photo sensor can automatically trace color mark accurately.
4,PLC control system combined with touch screen, can easily set can change the packing parameters.
Daily production output and self-diagnostic machine error can be viewed directly from the screen.
5,PID temperature controller monitors heat sealing temperature within ±1°C.
6, can be designed according to customer requirements bag type
Technical parameters:
model | SL190T |
Bag length (mm) | 120 |
Bag width (mm) | 40-80 |
Film width (mm) | Maximum 190 |
Packing quantity | base on needs |
Material type | Powder, granules, liquid |
Production capacity (bag / mini) | 25-30 packs / min |
Power | 220V/1Ph，60HZ / 1.2Kw |
Air pressure | 6 L/min ，0.6Mbar |
Seal form | Three side sealed bag |
Shenzhen Sany pack Equipment Co., Ltd. is a research and development, production and sales as one of the professional packaging equipment manufacturers. The company's main products are mask packaging machine, vertical packaging machine, strip packing machine, filling equipment, labeling equipment, non-standard assembly line equipment, the company's products have been in the pharmaceutical, cosmetic, food, hardware and other industries widely used, Some products are exported to Europe, the Americas, Southeast Asia and other regions.
