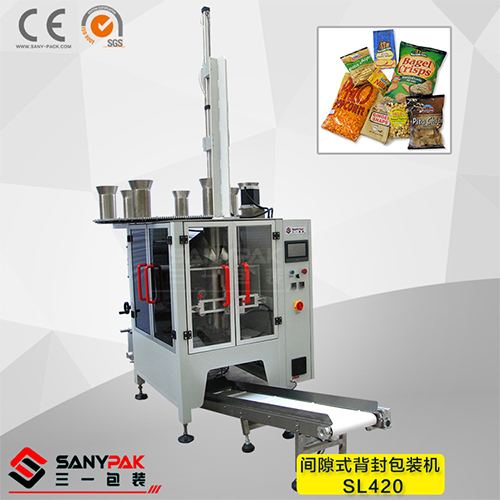

Big volume pillow pack vertical packaging machine
The scope of application:
The machine can be widely used in food, medicine, chemicals, hardware and other fields for automatic measuring,filling materials,bag forming,sealing packaging.
Main Features:
1,Automatically complete product measuring,feeding,filling,bag forming and data printing,sealing,bag cutting and product conveying.
2,PLC is combined with touch screen control system,easy operation,simple and intuitive interface.
3,Servo motor driven, double belt film pulling system is reliable and accuracy.
4,Used high end electrical and pneumatic components from overseas professional supplier.
5,It can matches with measuring cup,powder head,electronic weigher,rotor pump and other filling devices to complete granule,powder and liquid material package.
6,It is suitable for various kind of bags:pillow bag,angle,angle bag,punch bag,link bag etc.
7,Machine main material is stainless steel and aluminum alloy.
Technical parameters:
model | SL-420 | SL-520 | SL-620 |
Maximum capacity (Ml) | 1000 | 1500 | 2000 |
Bag length (mm) | 80-300 | 80-390 | 120-450 |
Bag width (mm) | 80-200 | 90-250 | 110-300 |
Film width (mm) | 200-420 | 200-520 | 250-620 |
Production capacity (bag / mini) | 30-60 | 25-45 | 20-35 |
Power / power | 220V/1Ph，2.5Kw | 220V/1Ph,2.8Kw | 220V/1Ph,3.2Kw |
