Dual-inverter Horizontal Flow Packing Machine

Classification of the genus:dual invertor pillow packing machine
Click times:
Release date:2017/05/23
More
Online inquiry

Detailed introduction

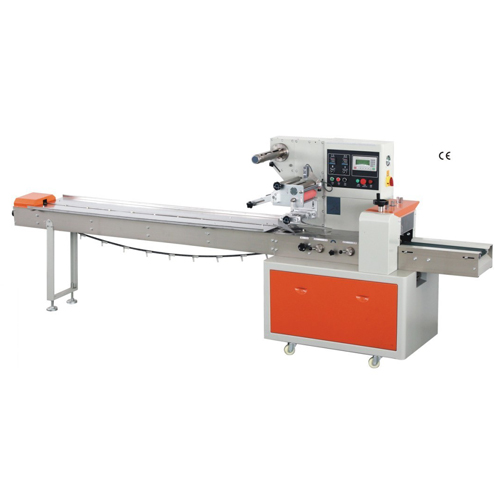

Dual-inverter Horizontal Flow Packing Machine SH-250

Main Features:

1,Dual inverter control,bag length can be setup and cut in one step,no need to adjust empty,saving time and film.

Human computer interface,easy for parameter setting,self-diagnostic function,machine error is directly viewed on screen.

2,High sensitive photoelectric sensor automatically trace color mark,sealing and cutting position is more accurate by digital input.

3,Independent temperature PID control,it is better for different package materials.

4,Positioning stop function,no stick knife,saving film.

5,Simple driving system,reliable working,convenient maintenance.

6,All software control,convenient for function adjustment and technology upgrade.

Application:

It is suitable for packing various solids and regular objects such as biscuits,pies,chocolates,bread,instant noodles,moon-cakes,

drugs and other daily necessities,industrial components,paper box,pallet and so on.

Technical parameters:

model	SH250
Film width	Max.250mm
Bag length	65～190mmor 120～280mm
Bag width	30～110mm
Product height	Max.40mm
Film diameter	Max.320mm
Packaging speed	40～230bag/min
Power Specifications	220V,50/60HZ,2.4KVA
Machine size	(L)3770×(W)670×(H)1450
Machine quality	550Kg
Remarks	Can be installed inflatable device
