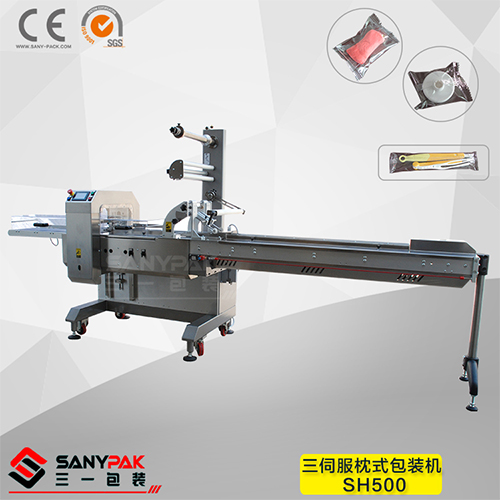

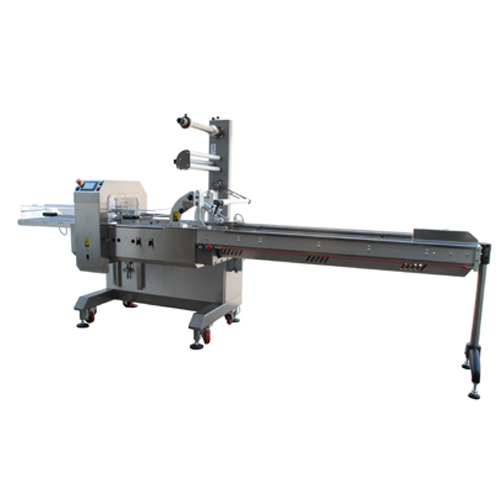

Triple Servo Driven Horizontal Flow Packing Machine SH-500
Main Features:
1,PLC is combined with 7inch touch screen control system,it is easy to setup parameters. Product output and
self-diagnostic machine error are directly showed on screen.
2,Triple Servo driven system,film speed is automatically synchronous with conveying speed.
3,When bag length is changed,the speed of transverse seal can be directly adjusted by hand wheel.
4,Machine design for easy maintenance and cleaning.
5,Pulling film wheel open is controlled by Pneumatic switch,the sealing wheel is automatically open when machine turn off.
6,It has safety guard to comply with CE standard.
7,Optional device: Photocell for printed film, Printer for date, line shaft for automatic feeders, etc.
Application: It is applicable for packing all kinds of solid and regular objects, including the foods such as biscuit, bread, instant noodle,
ice cream, moon cake and soft sweets, and other objects such as toilet soap, medicated essence, note book, pen pack,tape and medicines in regular shapes.
Technical parameters:
speed: | maximum 250 pcs/min |
Maximum film width: | 500mm |
Maximum film diameter: | 350mm |
Maximum packing height: | 100mm |
Maximum packing width: | 200mm |
Minimum package length: | 76mm |
Maximum package length: | 564mm |
Gas source: | 6bar |
Voltage: | 380-400V 3ph |
power: | 3.0kw |
Shenzhen Sany pack Equipment Co., Ltd. is a research and development, production and sales as one of the professional packaging equipment manufacturers. The company's main products are mask packaging machine, vertical packaging machine, strip packing machine, filling equipment, labeling equipment, non-standard assembly line equipment, the company's products have been in the pharmaceutical, cosmetic, food, hardware and other industries widely used, Some products are exported to Europe, the Americas, Southeast Asia and other regions.
