Vacuum feeder

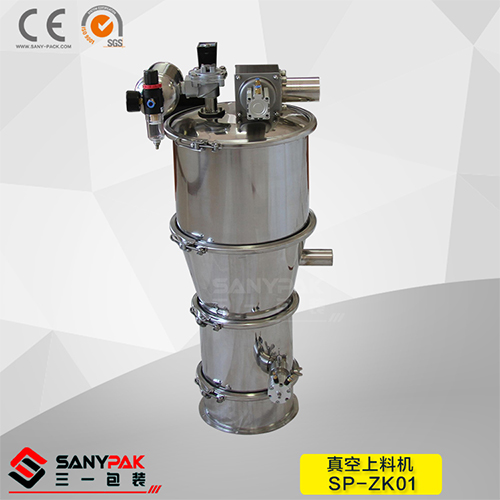

Vacuum feeder SP-ZK01

The working principle:

Vacuum feeding machine is a vacuum generator to produce a vacuum, so tha tthe suction nozzle inlet and the whole system are in a vacuum status, powder material with the outside air was sucked into the mouth, it forms material flow, through the suction pipe to reach the hopper, the air and powder material is separate in hopper. The separated material enters into the receiving equipment. Feeding - discharge is through the pneumatic three-way valve to open and close to complete, and pneumatic three-way valve opening and closing by the cycle of time relay to control. Vacuum feeding machine is equipped with compressed air blowing device, each discharge, the compressed air pulse blowing bag, the adsorption of powder on the surface of the bag down to ensure that the suction material to normal operation

Applicable for the following materials:

Drugs: bezoar powder, bezoar tablets, ampicillin powder, calcium carbonate powder, Chinese medicine extract powder, VC Yinqiao powder, cephalexin powder, vitamin raw material powder, paracetamol powder, intestinal clear powder, Ventilia powder, garlic powder, Barium sulfate, sodium chloride, cellulose powder, sodium bicarbonate, botanical powder, mucosomal sulphate, laxatives

Food: seasonings, baking agents, cheese powder, cocoa powder, crystal sugar, curry powder, fruit juice powder, lactose, pepper, starch, baking powder, coffee beans, milk powder, tea, chewing gum raw powder ...

Chemical: active carbon powder, alumina, aluminum hydroxide, zinc stearate, filter cake, sodium cyanide, bentonite, calcium carbonate, diatomaceous earth, sodium hydroxide, soot, tetradomethane, silicon carbon, Silica, Sodium Nitrate, Dicyandiamide Powder, Zeolite ... Pigment and Coating: Dye Powder, Epoxy Resin, Acrylic Polymer, Titanium Dioxide, Toner Powder, Teflon Powder ...

Plastic: polyethylene particles, polystyrene particles, polyurethane particles, rubber particles, ethylene / propylene particles ...

Metal powder: aluminum powder, iron powder, magnesium powder, tungsten powder, cobalt powder ...

Other: material cement, casting auxiliary materials, welding powder, quartz particles, sand, grain seeds ... ...

Main features:

A) sealed transportion, no dust leakage, no cross-contamination

B) applied with the GMP standard and the CIP requirements, can provide sterile grade products

C) modular design, disassembly and clean is fast and convenient

D) effectively solve the powder granule stratification phenomenon

E) effectively eliminate the static of the material , no pollution to the surrounding environment

F) automatic control, simple operation, convenient

G) the work process without heat generation, safety explosion

H) no vibration, low noise, energy saving and efficient, low maintenance costs.
